Activated Carbon Filters
PRODUCTS > Activated Carbon Filters
Activated Carbon Filters

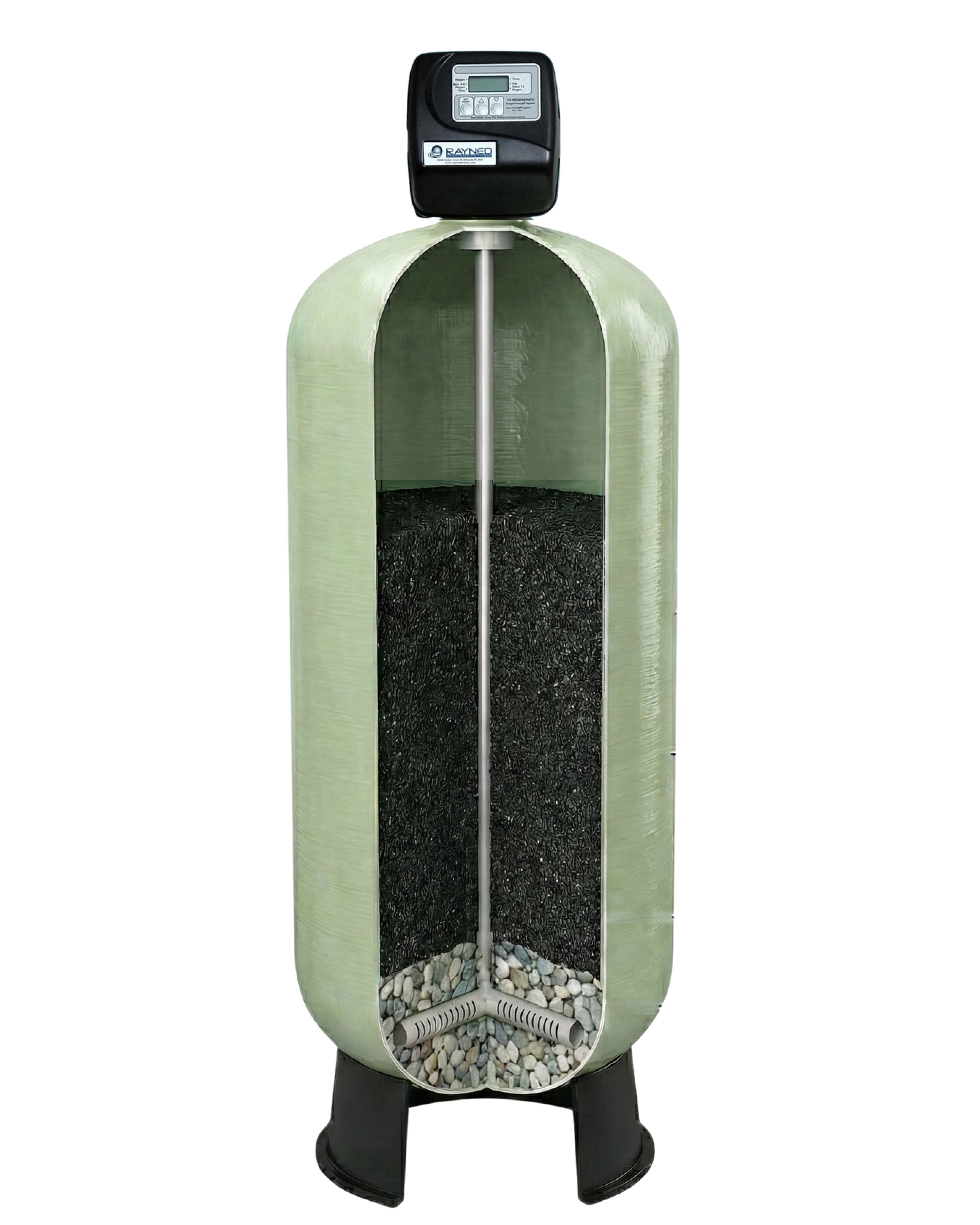

Rayned’ Commercial carbon filters are built utilizing Activated Carbon. The carbon filter is for treating city water and is great for removing taste, odor, chlorine and other contaminants such as lead, copper, heavy metals, gases, pesticides and herbicides from the water.
Filter Specifications and Performance Data
| Part Number |
Tank Size Dia x Height (In Inches) |
Mesh Size |
Service Standard Flow Rate GPM (LPM) |
Service Peak Flow Rate GPM (LPM) |
Service VOC Reduction GPM (LPM) |
Backwash 40% Exp. @ 60°F GPM (LPM) |
Standard Connection Size |
|---|---|---|---|---|---|---|---|
| RAYCF 8 | 8' x 44' | 12 x 40 | 4–6 (15–23) | 6 (23) | < 2 (8) | 3.5 (13.3) | ¾” Copper Tube |
| RAYCF 10 | 10' x 54' | 12 x 40 | 7–9 (26–34) | 12 (45) | < 3 (11) | 5 (18.9) | ¾” Copper Tube |
| RAYCF 12 | 12' x 52' | 12 x 40 | 10 (38) | 15 (57) | < 4 (15) | 8 (30.3) | ¾” Copper Tube |
| RAYCF 13 | 13' x 54' | 12 x 40 | 12 (45) | 18 (68) | < 5 (19) | 9 (34.0) | 1” Copper Tube |
| RAYCF 14 | 14' x 65' | 12 x 40 | 15 (57) | 24 (91) | < 6 (23) | 10 (38) | 1” Copper Tube |
| RAYCF 16 | 16' x 65' | 12 x 40 | 20 (76) | 28 (106) | < 8 (30) | 15 (57) | 1” Copper Tube |
| RAYCF 18 | 18' x 65' | 12 x 40 | 25 (95) | 30 (114) | < 10 (38) | 20 (76) | 1” Copper Tube |
| RAYCF 21 | 21' x 62' | 12 x 40 | 30 (114) | 38 (144) | < 12 (45) | 20 (76) | 1” Copper Tube |
| RAYCF 21X | 21' x 62' | 8 x 30 | 35 (133) | 50 (190) | < 15 (57) | 30 (114) | 1.25” NPT (Male) |
| RAYCF 24 | 24' x 72' | 8 x 30 | 45 (171) | 65 (246) | < 20 (76) | 38 (144) | 1.5” NPT (Male) |
| RAYCF 30 | 30' x 72' | 8 x 30 | 60 (227) | 96 (363) | < 30 (114) | 60 (227) | 1.5” NPT (Male) |
| RAYCF 36 | 36' x 72' | 8 x 30 | 75 (284) | 125 (473) | < 40 (152) | 85 (322) | 2” NPT (Male) |
| RAYCF 42 | 42' x 72' | 8 x 30 | 95 (359) | 144 (545) | < 50 (189) | 100 (379) | 2” NPT (Male) |
| RAYCF 48 | 48' x 72' | 8 x 30 | 125 (473) | 200 (757) | < 72 (273) | 180 (682) | 2”–3” NPT (Male) |
| RAYCF 63 | 63' x 67' | 8 x 30 | 155 (587) | 300 (1136) | < 110 (416) | 275 (1041) | Stager Controller |
