AG FILTERS
PRODUCTS > AG FILTERS
AG FILTERS

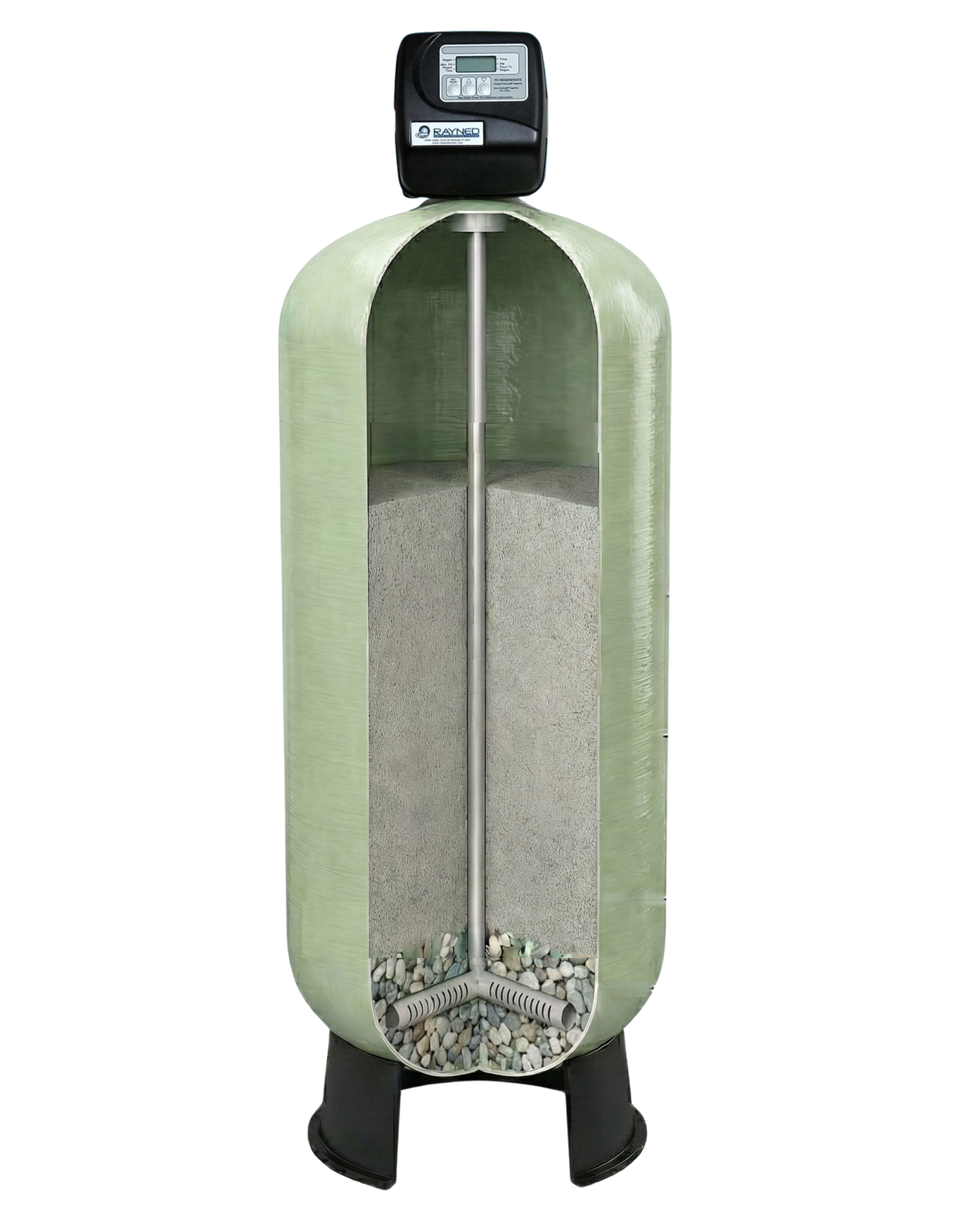

Rayned’ are built utilizing Ag filter media. Filter-Ag granules have irregular surface characteristics allowing maximum removal of suspended matter throughout the filter bed. Filter-Ag can be used in either pressure or gravity flow filter systems. It typically removes normal suspended solids ferric iron, silt, and turbidity down to 10 micron ranges.
Advantages of Filter-Ag include less pressure loss than most other mediums. It is lightweight and requires 50% lower backwash rates.
Filter-Ag has high dirt removal capacity that results in longer filter runs with substantial savings in labor cost, backwash water and time out service.
Filter Specifications and Performance Data
| Part Number | Tank Size Dia x Height (inches) | Service Min Flow Rate GPM (LPM) | Service Peak Flow Rate GPM (LPM) | Backwash Drop GPM (LPM) | Standard Connection Size |
|---|---|---|---|---|---|
| RAYAG 8 | 8″ x 44″ | 6 (23) | 6 (23) | 3.5 (13.3) | ¾” Copper Tube |
| RAYAG 10 | 10″ x 54″ | 9 (34) | 12 (45) | 5 (18.9) | ¾” Copper Tube |
| RAYAG 12 | 12″ x 52″ | 10 (38) | 15 (57) | 8 (30.3) | ¾” Copper Tube |
| RAYAG 13 | 13″ x 54″ | 12 (45) | 18 (68) | 9 (34.1) | 1″ Copper Tube |
| RAYAG 14 | 14″ x 65″ | 16 (61) | 24 (91) | 10 (38) | 1″ Copper Tube |
| RAYAG 16 | 16″ x 65″ | 20 (76) | 28 (106) | 15 (57) | 1″ Copper Tube |
| RAYAG 18 | 18″ x 65″ | 25 (95) | 38 (144) | 18 (68) | 1″ Copper Tube |
| RAYAG 21 | 21″ x 62″ | 35 (133) | 50 (190) | 24 (91) | 1.5″ NPT (Male) |
| RAYAG 24 | 24″ x 72″ | 45 (171) | 65 (246) | 31 (117) | 1.5″ NPT (Male) |
| RAYAG 30 | 30″ x 72″ | 60 (227) | 75 (284) | 50 (189) | 1.5″ NPT (Male) |
| RAYAG 36 | 36″ x 72″ | 70 (265) | 125 (472) | 70 (265) | 2″ NPT (Male)) |
| RAYAG 42 | 42″ x 72″ | 95 (341) | 145 (549) | 96 (363) | 2″ NPT (Male) |
| RAYAG 48 | 48″ x 72″ | 145 (549) | 200 (758) | 126 (477) | 2 – 3″ NPT (Male) |
| RAYAG 63 | 63″ x 67″ | 205 (777) | 400 (1515) | 196 (742) | Stager Controller |
