Big Blue Filter Housings

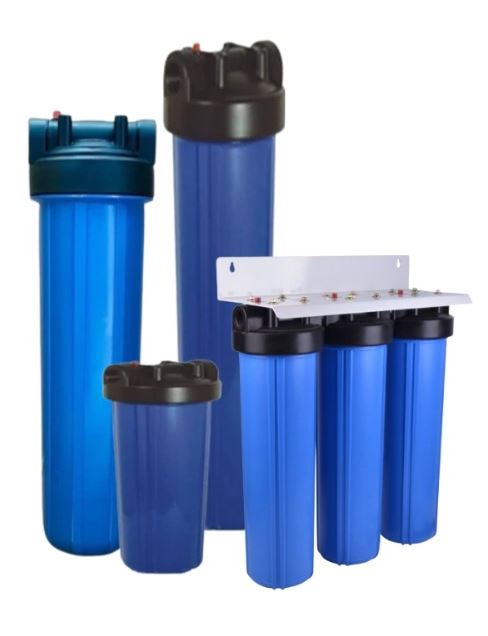

Big Blue® filter housings offer the versatility to meet all of your large capacity filtration needs, including high-flow and heavy-sediment applications. The extra large housing allows for greater cartridge capacity, reducing the number of vessels required for high flow-rate applications. Sumps are constructed of durable reinforced polypropylene and are available in both 10″ and 20″ lengths.
The high-flow polypropylene (HFPP) cap is available with 3/4″, 1″ or 1½” NPT inlet and outlet ports. The 1¼” internal port allows a greater volume of liquid to pass through the HFPP cap more rapidly.
Big Blue® housings are compatible with a broad range of chemicals and are available with or without an optional pressure relief button. They accept a wide variety of 4½” diameter cartridges in either 10″ or 20″ lengths. BIG BLUE®
➢ Large capacity housing suitable for high flow applications
➢ Available in 10″ and 20″ sizes to meet your needs
➢ Optional pressure relief/bleed on inlet side of cap
➢ Accepts 4½” diameter cartridges
Housing Specification and Performance Data
| Model | Maximum Dimension |
Initial Δ P (psi) @ Flow Rate (gpm) |
|---|---|---|
| 10" BB–3/4" |
13-1/8" × 7-1/4" (333 mm × 184 mm) |
2 psi @ 15 gpm (0.1 bar @ 57 L/min) |
| 10" BB–1" |
13-1/8" × 7-1/4" (333 mm × 184 mm) |
1 psi @ 15 gpm (0.1 bar @ 57 L/min) |
| 10" BB–1-1/2" |
13-5/8" × 7-1/4" (346 mm × 184 mm) |
1 psi @ 20 gpm (0.1 bar @ 76 L/min) |
| 20" BB–1" |
23-3/8" × 7-1/4" (594 mm × 184 mm) |
1 psi @ 25 gpm (0.1 bar @ 95 L/min) |
| 20" BB–1-1/2" |
23-7/8" × 7-1/4" (606 mm × 184 mm) |
1 psi @ 35 gpm (0.1 bar @ 132 L/min) |
