Birm Filters
PRODUCTS > Birm Filters
Birm Filters

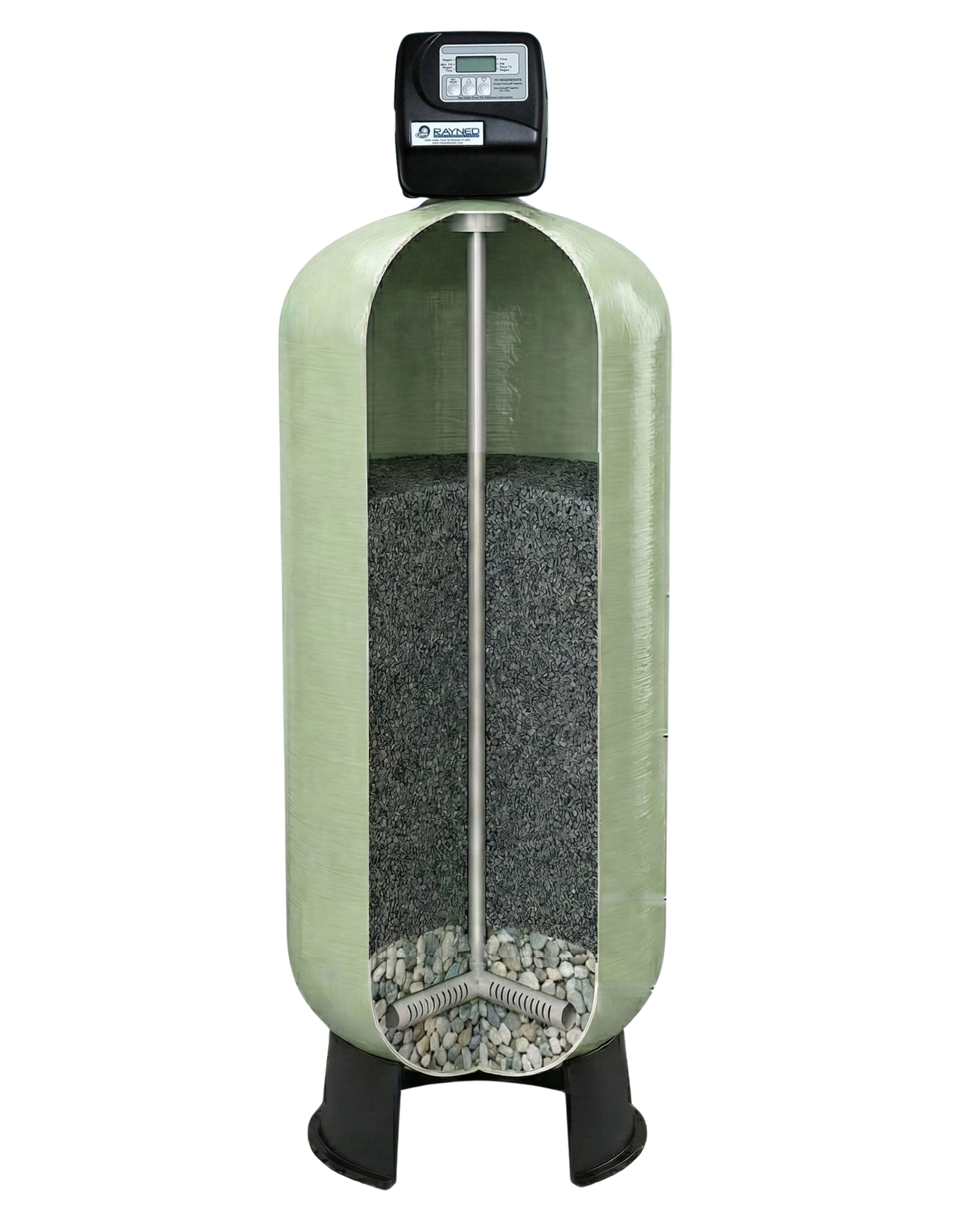

Rayned’ Iron filters using Birm Media utilize dissolved oxygen in the water to help oxidize iron so the Birm can remove more efficiently, Birm is an efficient and economical method of removing dissolved iron and manganese compounds from raw water supplies.
Features:
➢ High specific gravity allows unique filter design.
➢ Iron removal efficiency is extremely high.
➢ Negligible labor cost: only periodic backwashing required.
➢ Durable material with a long life and wide temperature range.
Technical Data
| Part Number |
Tank Size Dia x Height (In Inches) |
Service Min Flow Rate GPM (LPM) |
Service Peak Flow Rate GPM (LPM) |
Backwash Drop GPM (LPM) |
Standard Connection Size |
|---|---|---|---|---|---|
| RAYBM 8 | 8' x 44' | 3–5 (11–19) | 6 (23) | 7 (27) | ¾” Copper Tube |
| RAYBM 10 | 10' x 54' | 6–8 (23–30) | 10 (38) | 12 (45) | 1” Copper Tube |
| RAYBM 12 | 12' x 52' | 8–10 (30–38) | 11 (42) | 15 (57) | 1” Copper Tube |
| RAYBM 13 | 13' x 54' | 9 (34) | 13 (49) | 20 (76) | 1” Copper Tube |
| RAYBM 14 | 14' x 65' | 11 (42) | 15 (57) | 22 (83) | 1” Copper Tube |
| RAYBM 16 | 16' x 65' | 14 (53) | 20 (76) | 29 (110) | 1” NPT (Male) |
| RAYBM 18 | 18' x 65' | 17 (64) | 25 (95) | 35 (132) | 1” NPT (Male) |
| RAYBM 21 | 21' x 62' | 20 (76) | 30 (114) | 50 (189) | 1” NPT (Male) |
| RAYBM 21X | 21' x 62' | 25 (95) | 35 (132) | 50 (189) | 1.5” NPT (Male) |
| RAYBM 24 | 24' x 72' | 35 (132) | 50 (189) | 65 (246) | 1.5” NPT (Male) |
| RAYBM 30 | 30' x 72' | 50 (189) | 75 (284) | 90 (341) | 1.5” NPT (Male) |
| RAYBM 36 | 36' x 72' | 65 (246) | 90 (341) | 90 (341) | 1.5” NPT (Male) |
| RAYBM 42 | 42' x 72' | 90 (341) | 120 (453) | 135 (510) | 2” NPT (Male) |
| RAYBM 48 | 48' x 72' | 125 (321) | 180 (680) | 170 (643) | 2”–3” NPT (Male) |
