Commercial Water Softeners
PRODUCTS > Commercial Water Softeners

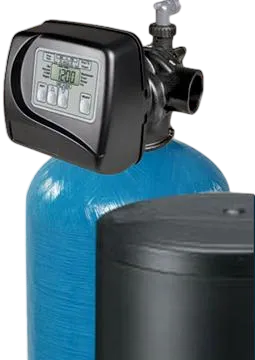

Commercial Water Softeners
Rayned commercial water softeners are built utilizing Rayned’s resin as the primary layer. These cationic ion exchange systems are designed to remove calcium and magnesium (hardness), and a host of other cations from the water. Rayned takes care of the little extras such as: machined PVC distribution systems, oversized brine tanks, safety floats standard in 16 inch or larger systems, and anthracite under bedding for less channeling.
➢ Electronic Time Clock
➢ 100% corrosion proof plastic systems
➢ Energy efficient controller uses less than $5.00 of electricity per year
➢ Tanks feature 150 PSI operating pressure
➢ 10 year warranty on tank
➢ All international voltages available
➢ Electronic Time Clock Systems with Professional Programming
Technical Data
| Model | Tank Size Dia × Height (Inches) |
CaCos Capacity | Service Flow Rate | Backwash 50% Exp. GPM (LPM) |
Brine Tank Liters |
Standard Connection Size (Inches) |
|||
|---|---|---|---|---|---|---|---|---|---|
| @ 6 lb Per Cu. Ft. Grains |
@ 10 lb Per Cu. Ft. Grains |
@ 15 lb Per Cu. Ft. Grains |
Standard GPM (LPM) @5-10 PSID |
@ 15 lb Per Cu. Ft. Grains |
|||||
| RAYSF-1C-12 | 12 × 52 | 47,600 | 60,400 | 68,800 | 10 (37.9) | 20 (75.7) | 3.5 (13.6) | 100 Ltrs. | 1" MNPT |
| RAYSF-1C-13 | 13 × 54 | 59,500 | 75,500 | 86,000 | 12 (45.5) | 24 (90.9) | 4.1 (15.5) | 100 Ltrs. | 1" MNPT |
| RAYSF-1C-14 | 14 × 65 | 71,400 | 90,600 | 103,200 | 15 (56.9) | 25 (94.6) | 4.5 (17.0) | 100 Ltrs. | 1" MNPT |
| RAYSF-1C-16 | 16 × 65 | 95,200 | 120,800 | 137,600 | 20 (75.7) | 25 (94.6) | 5.0 (18.9) | 100 Ltrs. | 1" MNPT |
| RAYSF-125C-18 | 18 × 65 | 119,000 | 151,000 | 172,000 | 25 (94.6) | 25 (94.6) | 7.0 (26.5) | 100 Ltrs. | 1.25" MNPT |
| RAYSF-125C-21 | 21 × 62 | 142,000 | 181,200 | 206,400 | 25 (94.6) | 25 (94.6) | 9.0 (37.1) | 100 Ltrs. | 1.25" MNPT |
| RAYSF-15C-16 | 16 × 65 | 95,200 | 120,800 | 137,600 | 20 (75.8) | 33 (125) | 5.0 (18.9) | 300 Ltrs. | 1.5" MNPT |
| RAYSF-15C-18 | 18 × 65 | 119,000 | 151,000 | 172,000 | 25 (94.8) | 50 (190) | 7.0 (26.5) | 300 Ltrs. | 1.5" MNPT |
| RAYSF-15C-21 | 21 × 62 | 166,600 | 211,400 | 240,800 | 35 (133) | 70 (265) | 9.0 (37.1) | 300 Ltrs. | 1.5" MNPT |
| RAYSF-15C-24 | 24 × 72 | 226,100 | 286,900 | 326,800 | 45 (171) | 90 (341) | 12.0 (45.4) | 300 Ltrs. | 1.5" MNPT |
| RAYSF-15C-30 | 30 × 72 | 333,200 | 422,800 | 481,600 | 65 (246) | 100 (379) | 19.0 (71.9) | 300 Ltrs. | 1.5" MNPT |
| RAYSF-15C-36 | 36 × 72 | 428,400 | 543,600 | 619,200 | 90 (341) | 100 (379) | 27.0 (102.2) | 500 Ltrs. | 2" MNPT |
