Composite Filter Vessel

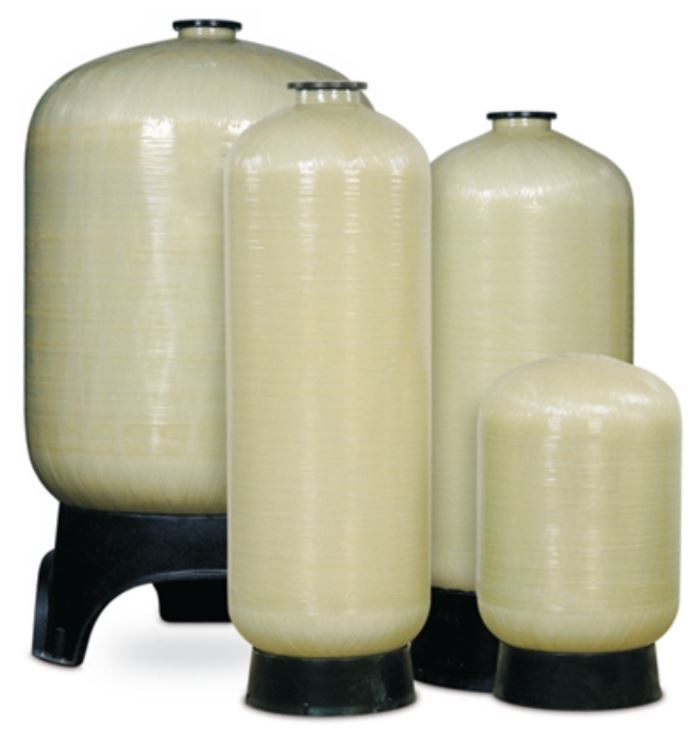

Rayned Composite pressure vessels offer composite fiberglass construction for outstanding performance and durability in harsh chemical environments. With capacities up to 2500 gallons and a variety of options, we can tailor a vessel to meet your needs. All Rayned Composite vessels are warranted for 5 years.

Product Features:

➢ For commercial and industrial water treatment and storage

➢ 100% composite fiberglass construction

➢ Outstanding performance and durability in harsh chemical environments

➢ Absolutely will not – and cannot – rust

➢ Requires little or no maintenance

➢ Capacities up to 2500 gallons

➢ Factory-backed five-year warranty

Product Tabs

Technical Data

Tank Dia
(In Inches)		 Description Height W/ Base
Inches / mm		 Height W/O Base
Inches / mm		 Capacity
Gallons / Liters		 Cubic Feet Top Open Bottom Open Top Side Bottom Side Base Ship Weight
RAY18-65
18" Dia		 18 X 65 67.1 / 1704 66.5 / 1689 62.4 / 236 8.3 4"-8" UN N/A N/A N/A SMC 67.7
18 X 65 79.8 / 2027 63.3 / 1608 62.4 / 236 8.3 4"-8" UN 4"-8" UN N/A N/A Tripod 79.7
18 X 65 84.4 / 2144 70.0 / 1778 62.4 / 236 8.3 6" FLG 6" FLG N/A N/A Tripod 79.7
RAY21-62
21" Dia		 21 X 62 66.9 / 1699 62.6 / 1590 82.4 / 312 11.0 4"-8" UN N/A N/A N/A SMC 90
21 X 62 79.0 / 2006 62.6 / 1590 82.4 / 312 11.0 4"-8" UN 4"-8" UN N/A N/A Tripod 90
RAY24-72
24" Dia		 24 X 72 74.1 / 1882 70.6 / 1793 119 / 450 15.9 4"-8" UN N/A N/A N/A SMC 139
24 X 72 84.5 / 2147 69.0 / 1753 119 / 450 15.9 4"-8" UN 4"-8" UN N/A N/A Tripod 139
24 X 72 76.8 / 1951 73.3 / 1862 119 / 450 15.9 6" FLG N/A N/A N/A SMC 149
24 X 72 88.9 / 2258 74.5 / 1892 119 / 450 15.9 6" FLG 6" FLG N/A N/A Tripod 149
RAY30-72
30" Dia		 30 X 72 85.9 / 2182 70.2 / 1783 187 / 708 25.0 4"-8" UN 4"-8" UN N/A N/A Tripod 234
30 X 72 80.8 / 2052 73.0 / 1854 187 / 708 25.0 6" FLG N/A N/A N/A SMC 240
30 X 72 88.3 / 2242 74.7 / 1897 187 / 708 25.0 6" FLG 6" FLG N/A N/A Tripod 240
RAY36-72
36" Dia		 36 X 72 86.2 / 2190 70.5 / 1791 264 / 999 35.3 4"-8" UN 4"-8" UN N/A N/A Tripod 292
36 X 72 83.0 / 2108 73.5 / 1867 264 / 999 35.3 6" FLG N/A N/A N/A SMC 292
36 X 72 89.0 / 2261 75.0 / 1905 264 / 999 35.3 6" FLG 6" FLG N/A N/A Tripod 292
36 X 72 89.2 / 2261 70.0 / 1905 264 / 999 35.3 6" FLG 6" FLG 4" FLG 4" FLG Tripod 292
RAY42-72
42" Dia		 42 X 72 94.5 / 2401 71.0 / 1803 345 / 1306 46.1 6" FLG N/A N/A N/A Tripod 678
42 X 72 72.0 / 1828 71.0 / 1803 345 / 1306 46.1 6" FLG N/A N/A N/A SMC XXX
42 X 72 94.6 / 2404 73.0 / 1854 345 / 1306 46.1 6" FLG 6" FLG N/A N/A Tripod 678
RAY48-72
48" Dia		 48 X 72 91.8 / 2332 76.0 / 1930 463 / 1753 61.9 6" FLG N/A N/A N/A Tripod 780
48 X 72 96.6 / 2454 80.8 / 2052 463 / 1753 61.9 6" FLG 6" FLG 4" FLG 4" FLG Tripod 780
48 X 72 92.8 / 2357 77.0 / 1955 463 / 1753 61.9 6" FLG 6" FLG N/A N/A Tripod 780
48 X 72 97.5 / 2477 81.7 / 2075 463 / 1753 61.9 16" MWY 6" FLG 4" FLG 4" FLG Tripod 780
48 X 72 93.8 / 2383 78.0 / 1981 463 / 1753 61.9 16" MWY 6" FLG N/A N/A Tripod 780
RAY63-67
63" Dia		 63 X 67 80.3 / 2344 67.8 / 1722 600 / 2271 80.2 16" MWY 6" FLG N/A N/A Tripod 900
63 X 67 79.5 / 2324 67.0 / 1702 600 / 2271 80.2 6" FLG 6" FLG N/A N/A Tripod 900
63 X 67 80.3 / 2344 67.8 / 1722 600 / 2271 80.2 16" MWY 10" FLG N/A N/A Tripod 900
