CW/WP Series Wounded Cartridge

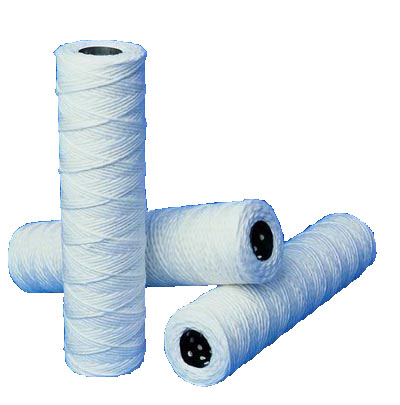

CW cartridges are very economical and wound in a standard pattern around the core. They are available in 10, 30 and 50-micron ratings.
WP Series cartridges are wound in a precise pattern around the core providing greater surface area. The result is higher dirt-loading capacity and greater efficiency than standard wound cartridges like the CW.
Both of these string-wound cartridge styles are capable of withstanding temperatures up to 165° F (73.9° C), and will accommodate flow rates between 7 and 10 GPM with minimal pressure drop.
CW and WP Series cartridges are suitable for a wide variety of sediment filtration applications, including municipal and well water as well as many industrial fluids.
➢ String-wound design reduces fine sediment from a variety of fluids
➢ Withstands temperatures up to 165° F (73.9° C)
➢ Economically priced
➢ Nominal 10, 30, 50-micron rating (CW) and nominal 5, 30-micron rating (WP)
Cartridge Specifications and Performance Data
| Model | Maximum Dimensions | Micron Rating (Nominal) |
Initial Δ P (psi) @ Flow Rate (gpm) |
|---|---|---|---|
| CW-F |
2-1/4" × 9-7/8" (60 mm × 251 mm) |
10 |
<1 psi @ 10 gpm (<0.07 bar @ 27 L/min) |
| CW-MF |
2-1/4" × 9-7/8" (60 mm × 251 mm) |
30 |
<1 psi @ 10 gpm (<0.07 bar @ 38 L/min) |
| CW-50 |
2-1/4" × 9-7/8" (60 mm × 251 mm) |
50 |
<1 psi @ 10 gpm (<0.07 bar @ 38 L/min) |
| WP-5 |
2-1/4" × 9-7/8" (60 mm × 251 mm) |
5 |
<2.5 psi @ 10 gpm (<0.17 bar @ 38 L/min) |
| WP-30 |
2-1/4" × 9-7/8" (60 mm × 251 mm) |
30 |
<1.4 psi @ 10 gpm (<0.10 bar @ 38 L/min) |
