MULTI-MEDIA FILTERS

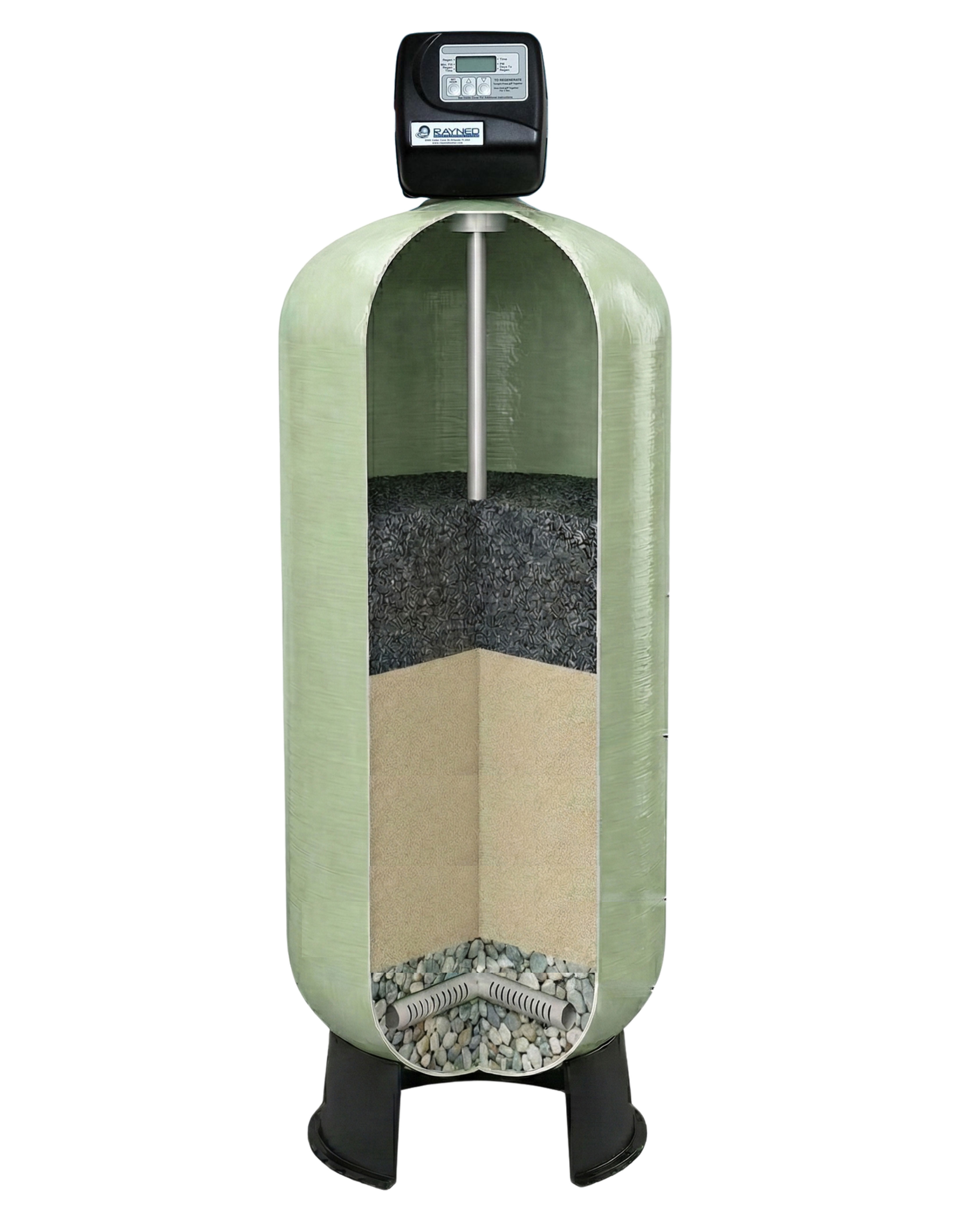

Rayned’ Commercial Sediment Filters are built utilizing Filter Sand, Anthracite filter media. These filters are designed to remove ferric iron, silt, and turbidity. Sediment filtration down to the 10 – 20 micron level is common. Rayned takes care of the little extras such as: machined PVC distribution systems, bolted on bases for ease of carrying, anthracite under-bedding for less channeling.
Technical Data
| Part Number | Tank Size Dia x Height (inches) | Service Min Flow Rate GPM (LPM) | Service Peak Flow Rate GPM (LPM) | Backwash Drop GPM (LPM) | Standard Connection Size |
|---|---|---|---|---|---|
| RAYMM 10 | 10' x 54' | 6 (22.8) | 9 (34.2) | 4.0 (18.9) | ¾” Copper Tube |
| RAYMM 12 | 12' x 52' | 8(30.4) | 12 (5.6) | 7.0 (26.6) | ¾” Copper Tube |
| RAYMM 14 | 14' x 65' | 10 (38) | 15 (57) | 10 (38) | 1″ Copper Tube |
| RAYMM 16 | 16' x 65' | 14 (53)) | 20 (76) | 13 (49) | 1″ Copper Tube |
| RAYMM 18 | 18' x 65' | 17 (65) | 24 (91) | 18 (68.4) | 1″ Copper Tube |
| RAYMM 21 | 21' x 62' | 22 (83) | 30 (114) | 25 (95) | 1″ Copper Tube |
| RAYMM 21X | 21' x 62' | 30 (114) | 48 (182) | 25 (95) | 1.25″ NPT (Male) |
| RAYMM 24 | 24' x 72' | 38 (144) | 63 (239) | 37 (140) | 1.5″ NPT (Male) |
| RAYMM 30 | 30' x 72' | 59 (223) | 96 (363) | 59 (223) | 1.5″ NPT (Male) |
| RAYMM 36 | 36' x 72' | 85 (322) | 145 (549) | 85 (322) | 2″ NPT (Male) |
| RAYMM 42 | 42' x 72' | 115 (435) | 193 (731) | 115 (435) | 2″ NPT (Male) |
| RAYMM 48 | 48' x 72' | 151 (572) | 253 (958) | 151 (572) | 2 – 3″ NPT (Male) |
| RAYMM 63 | 63' x 67' | 285 (1079) | 475 (1798) | 285 (1079) | Stager Controller |
