Nozzles

PRODUCTS > Nozzles

Distributor System

Strainers / Basket

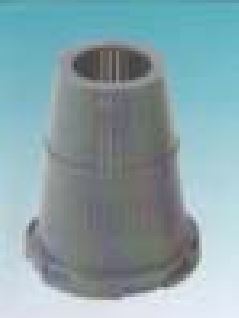

H2801A

Upper strainer, plain
Tank size 6"–12"
¾" riser connection
For Autotrol valve
Flow rate = 0.8 M3/hr

H2801B

Upper strainer, twist lock
Tank size 6"–12"
¾" riser connection
For Autotrol valve
Flow rate = 0.8 M3/hr

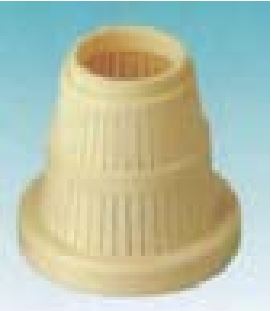

H2803

Bottom strainer, socket Ø0.75"
Tank size 6"–12"
¾" riser connection
For Autotrol valve
Flow rate = 0.8 M3/hr

H2805

Upper strainer, twist lock Ø0.75", ABS
Tank size 6"–12"
For Fleck valve
Flow rate = 1.5 M3/hr

H2807

Bottom strainer, socket Ø0.75", ABS
Tank size 6"–12"
For Fleck valve
Flow rate = 1.5 M3/hr

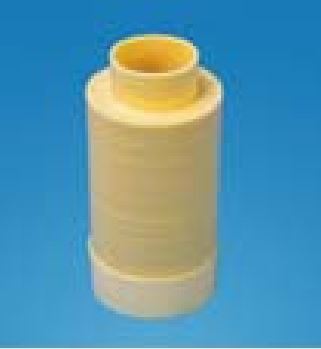

Top Distributor Assembly (4" 8-UN Top Opening Tank)

H182A

Top stack basket
4" 8-UN top opening tank
2" OD socket
Tank size 14"–36"
Flow rate = 12 M3/hr

H182B

Top stack basket
1.5" riser tube connection
Tank size 14"–36"
For Runxin valve
Flow rate = 12 M3/hr

H182-1

Top stack basket
Screw lock
Tank size 14"–36"
For Magnum valve
Flow rate = 12 M3/hr

H182BL‐1(2.0")

Top stack basket, 4" 8‐UN top opening tank, , ɸ2"
riser tube connection, screw lock,
Tank size 14" ‐ 36",
For Fleck 3150 valve,
Flow rate = 12M3/Hr

H182BL‐1(1.5")

Top stack basket, 4" 8‐UN top opening tank, , ɸ1.5"
riser tube connection, screw lock,
Tank size 14" ‐ 36",
For Runxin valve,
Flow rate = 12M3/Hr

Bottom Distributor Assembly (4" 8-UN Top Opening Tanks)

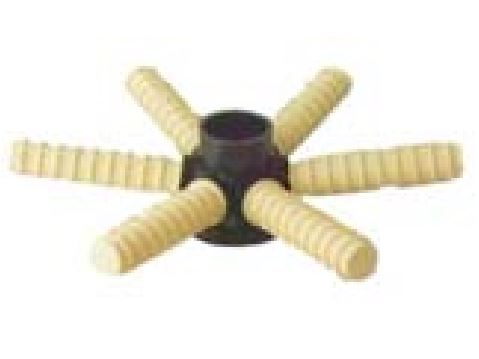

HU6260A2

Tank size 12"–16"
1.5" riser tube
6 × Ø35mm laterals
Flow rate 3–5 M3/hr

HU6370A2

Tank size 18"–21"
1.5" riser tube
6 × Ø35mm laterals
Flow rate 5–8 M3/hr

HU6450A2

Tank size 24"
6 × Ø35mm laterals
Flow rate 8–10 M3/hr

HU6260B2

Tank size 14" ‐ 16", 4" 8‐UN top opening
1.5" riser tube connection, c/w hub, 6 ea ɸ 53mm
x 111mm screw lock laterals;
Flow rate = 4‐6M3/Hr

HU6370B2

Tank size 18" ‐ 21", 4" 8‐UN top opening
1.5" riser tube connection, c/w hub, 6 ea ɸ 53mm
x 174mm screw lock laterals;
Flow rate = 6‐8M3/Hr

HU6450B2

Tank size 24", 4" 8‐UN top opening
1.5" riser tube connection, c/w hub, 6 ea ɸ 53mm
x 237mm screw lock laterals;
Flow rate = 8‐10M3/Hr

HU6600B2

Tank size 30",top, 4" 8‐UN top opening
1.5" riser tube connection, c/w hub, 6 ea ɸ 53mm
x 300mm screw lock laterals;
Flow rate = 10‐13M3/Hr

HU6700B2

Tank size 36", 4" 8‐UN top opening
2" riser tube connection, c/w hub, 6 ea ɸ 53mm x
432mm screw lock laterals;
Flow‐ rate = 13 16M3/Hr

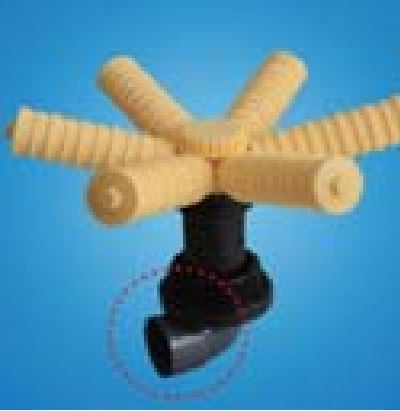

Bottom Distributor Assembly 4" 8‐UN Top and Bottom Opening Tanks

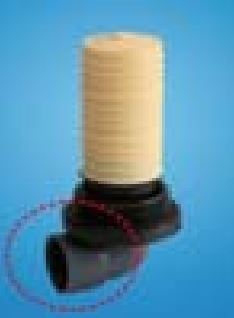

H5671B

Top distributor Assembly, 4" 8‐UN opening tank,
c/w 4" ‐ 2" reducer tank adaptor, 90° elbow 2"soc,
o‐ring seal and top stack strainer;
Flow rate = 10 ‐ 14M3/Hr

HD6260B2

Tank size 14" ‐ 16",
c/w 4" x 2" reducer tank adaptor, 90˚elbow 2"soc,
o‐ring , hub, 6 ea ɸ 53mm x 111mm screw lock laterals;
Flow rate = 4‐6M3/Hr

HD6370B2

Tank size 18" ‐ 21",
c/w 4" x 2" reducer tank adaptor, 90˚elbow 2"soc,
o‐ring , hub, 6 ea ɸ 53mm x 174mm
screw lock laterals;
Flow rate = 6‐8M3/Hr

HD6450B2

Tank size 24", c/w 4" x 2"
reducer tank adaptor, 90˚elbow 2"soc,
o‐ring , hub, 6 ea ɸ 53mm x 237mm screw lock laterals;
Flow rate = 8‐10M3/Hr

HD6600B2

Tank size 30", c/w 4" x 2"
reducer tank adaptor, 90˚elbow 2"soc,
o‐ring , hub, 6 ea ɸ 53mm x 300mm screw lock laterals;
Flow rate = 10‐13M3/Hr

HD6700B2

Tank 36", c/w 4" ‐ 2"
reducer tank adaptor, 90˚elbow 2"soc,
o‐ring , hub, 6 ea ɸ 53mm x 300mm
screw lock laterals;
Flow rate = 13‐16M3/Hr

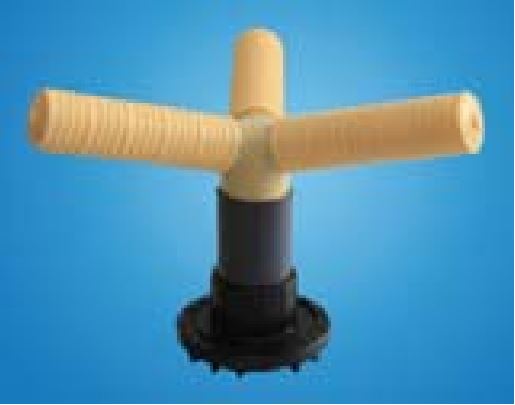

Top Distributor Assembly for 6" Flange Opening Tanks

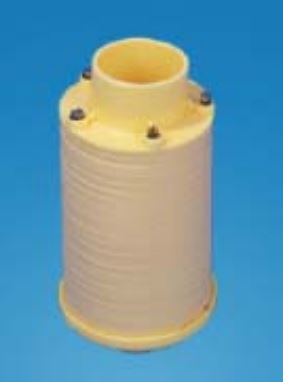

HU5680

Tank size 36‐48"
c/w ABS Flange adaptor 6 FL x 3" thread,
3 ea ɸ 85mm x 175mm screw lock,
Flow rate = 30M3/Hr

HU5680L

Tank size 48‐80"
6 FL x 4" thread Flange adaptor, 3 ea
ɸ 85mm x 286mm screw lock,
Flow rate = 30M3/Hr

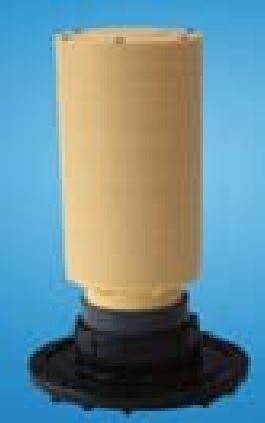

H173

Tank size 24" ‐ 48"
c/w ABS Flange adaptor 6" FL x 3" thread,
top stack basket, screw lock ,
Flow rate = 50M3/Hr

Bottom Distributor Assembly 6" Flange Top Opening Tanks

HU5669B2‐1

Tank size 24"
3" riser tube connection,
c/w Hub, 8 ea ɸ 53mm x
237 mm screw lock,
Flow rate = 18‐22M3/Hr

HU5670B2‐1

Tank size 30"
3" riser tube connection,
c/w Hub, 8 ea ɸ 53mm x
300mm screw lock,
Flow rate = 18‐22M3/Hr

HU5672B2‐1

Tank size 36"
3" riser tube connection,
c/w Hub, 8 ea ɸ 53mm x
300mm screw lock,
Flow rate = 18‐22M3/Hr

Bottom Distributor Assembly 6" Flange Top and Bottom Opening Tanks

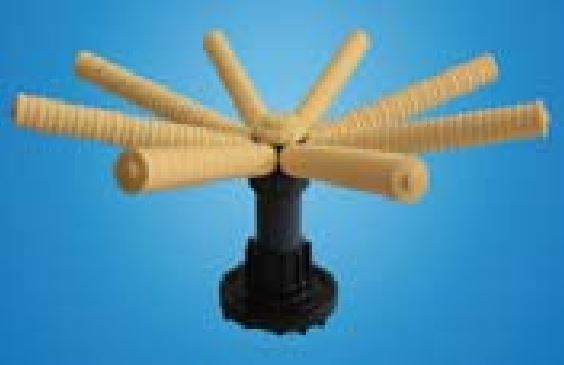

HU5669B2-1

Tank size 24"
c/w ABS Flange adaptor 6" x 3" x 3", Hub
8 ea φ53mm x 237 mm screw lock
Flow rate = 18-22M3/Hr

HU5670B2-1

Tank size 30"
c/w ABS Flange adaptor 6" x 3" x 3", Hub
8 ea φ53mm x 300mm screw lock
Flow rate = 18-22M3/Hr

HU5672B2-1

Tank size 36"
c/w ABS Flange adaptor 6" x 3" x 3", Hub
8 ea φ53mm x 300mm screw lock
Flow rate = 18-22M3/Hr

HD5673B2-1

Tank size 40" – 42"
c/w ABS Flange adaptor 6" x 3" x 3", Hub
8 ea φ53mm x 363mm screw lock
Flow rate = 18-22M3/Hr

HD5674B2-1

Tank size 48"
c/w ABS Flange adaptor 6" x 4" x 3", Hub
8 ea φ53mm x 426mm screw lock
Flow rate = 22-24M3/Hr

HD5675B2-1

Tank size 60"
c/w ABS Flange adaptor 6" x 4" x 3", Hub
8 ea φ53mm x 489mm screw lock
Flow rate = 24-26M3/Hr

HD5676B2-1

Tank size 63"
c/w ABS Flange adaptor 6" x 4" x 3", Hub
8 ea φ53mm x 552mm screw lock
Flow rate = 28M3/Hr

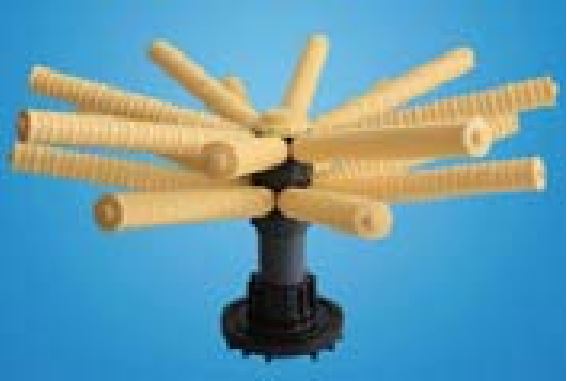

HD5674B2-2

Tank size 48"
c/w ABS Flange adaptor 6" x 4" x 3", 3" short Hub
16 ea φ53mm x 426mm screw lock, dual stack
Flow rate = 40-45M3/Hr

HD5675B2-2

Tank size 60"
c/w ABS Flange adaptor 6" x 4" x 3", 3" short Hub
16 ea φ53mm x 489mm screw lock, dual stack
Flow rate = 45-50M3/Hr

HD5676B2-2

Tank size 63"
c/w ABS Flange adaptor 6" x 4" x 3", 3" short Hub
16 ea φ53mm x 552mm screw lock, dual stack
Flow rate = 50M3/Hr

H. Accessories

H9901

2.5" Tank adaptor
Inlet/outlet 1" NPT
Riser connection φ27mm

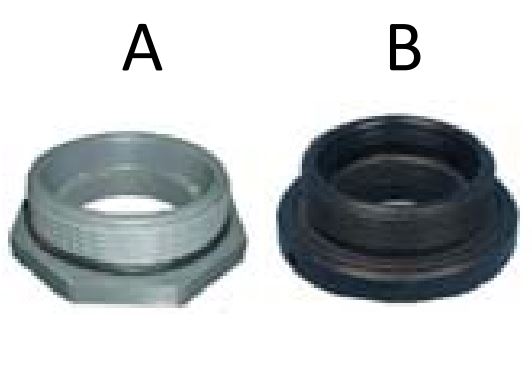

H9903-A

4" x 2.5" Tank adaptor
PVC c/w o-ring seal

H9903-B

4" x 2.5" Tank adaptor
ABS c/w o-ring seal

H9903 (PPO)

4" x 2.5" Tank adaptor
PPO c/w o-ring seal

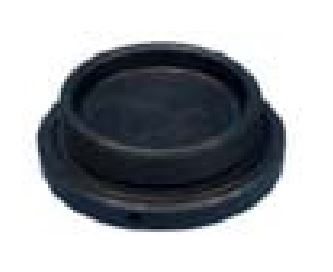

H9914

4" Closure
ABS c/w o-ring seal

H9914 (PPO)

4" Closure
PPO c/w o-ring seal

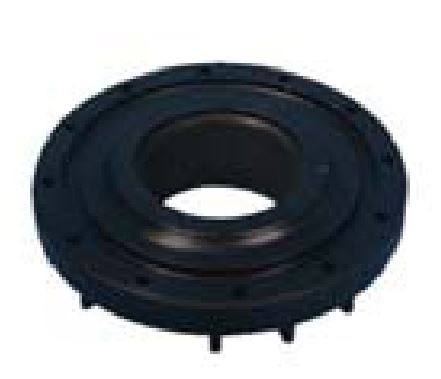

H9905

6" x 4" Flange reducer adaptor
c/w o-ring seal
ABS c/w bolt kit

H9905 (PPO)

6" x 4" Flange reducer adaptor
c/w o-ring seal
PPO c/w bolt kit

H9911

6" x 4" x 3" Flange reducer adaptor
o-ring seal
ABS c/w bolt kit

H9911 (PPO)

6" x 4" x 3" Flange reducer adaptor
o-ring seal
PPO c/w bolt kit

H9912

6" x 3" x 3" Flange reducer adaptor
o-ring seal
ABS c/w bolt kit

H9912 (PPO)

6" x 3" x 3" Flange reducer adaptor
o-ring seal
PPO c/w bolt kit

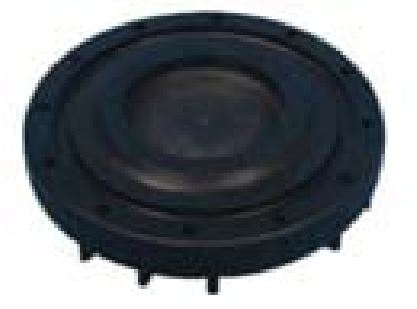

H9913

6" Flange closure
c/w o-ring seal
ABS c/w bolt kit

H9913 (PPO)
