Poly Glass Pressure Vessels

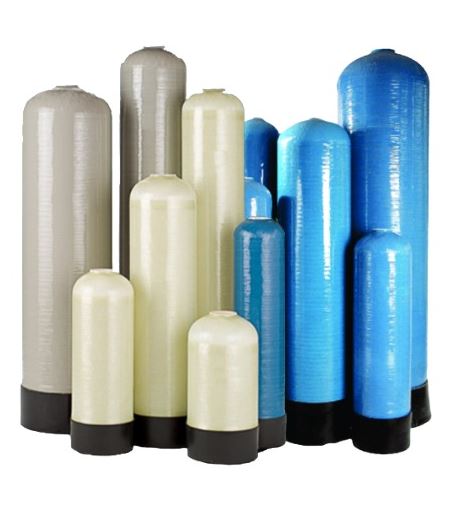

Rayned Polyglass pressure vessels offer polyglass construction for outstanding performance and provide years of reliable service for water softeners and water filter applications. These slim-diameter tanks holds up to 49 gallons of water and offer unmatched strength and chemical resistance. All Rayned Polyglass vessels are warranted for 5 years.

Operating parameters

➢ Maximum operating pressure: 150 psi
➢ Maximum operating temperature: 120° F

Design parameters Rayned

➢ Safety factor: 4:1 (Minimum burst at 600 psi)
➢ Cycle test: 250,000 cycles without leakage

Material of construction

➢ Inner shell material: Polyethylene
➢ Available inlets: See chart>

Product Tabs

Technical Data

Tank Size Dia. x Height (In Inches)	System Connection	Height Base/Inches / mm	Height W/O Base (In Inches / mm)	Capacity Gallons / Liters	Cubic Feet	Colors	Minimum Order Quantity
06" x 13"	2.5" Threaded	13.2 / 335	12.6 / 320	1.1 / 4.2	0.15	AL, BL, NA	See Factory
06" x 18"	2.5" Threaded	18.6 / 472	18.0 / 457	1.8 / 6.8	0.24	All	None
06" x 35"	2.5" Threaded	35.8 / 909	35.2 / 894	3.8 / 14.4	0.51	All	None
07" x 35"	2.5" Threaded	35.6 / 904	35.3 / 897	5.2 / 19.7	0.70	AL, BL, NA	See Factory
07" x 44"	2.5" Threaded	43.7 / 1110	43.4 / 1102	6.7 / 25.4	0.90	AL, BL, NA	See Factory
08" x 18"	2.5" Threaded	18.8 / 478	18.5 / 470	3.28 / 12.0	–	AL, NA	See Factory
08" x 35"	2.5" Threaded	35.6 / 904	35.3 / 897	6.6 / 25.0	0.88	All	None
08" x 40"	2.5" Threaded	40.2 / 1021	39.9 / 1013	7.8 / 29.5	1.04	All	None
08" x 44"	2.5" Threaded	44.4 / 1128	44.1 / 1120	8.4 / 31.8	1.16	All	None
09" x 18"	2.5" Threaded	18.6 / 472	18.0 / 457	3.9 / 14.8	0.52	All	None
09" x 35"	2.5" Threaded	35.6 / 904	35.3 / 897	8.3 / 31.4	1.11	All	None
09" x 40"	2.5" Threaded	40.2 / 1021	39.9 / 1013	9.5 / 36.0	1.27	All	None
09" x 48"	2.5" Threaded	48.2 / 1224	47.9 / 1217	11.8 / 44.7	1.58	All	None
10" x 35"	2.5" Threaded	35.6 / 904	35.3 / 897	10.2 / 38.6	1.36	All	None
10" x 40"	2.5" Threaded	40.3 / 1024	40.1 / 1018	11.5 / 43.5	1.54	All	None
10" x 44"	2.5" Threaded	44.6 / 1133	44.4 / 1128	13.1 / 49.6	1.75	All	None
10" x 47"	2.5" Threaded	47.4 / 1204	46.9 / 1191	15.1 / 57.0	2.02	All	None
10" x 54"	2.5" Threaded	54.8 / 1392	54.6 / 1387	16.4 / 62.0	2.19	All	None
10" x 54"	2.5" Threaded 1.25 TDH	54.8 / 1392	54.6 / 1387	16.4 / 62.0	2.19	All	None
12" x 42"	2.5" Threaded	42.8 / 1087	42.2 / 1072	19.1 / 72.0	2.55	AL, NA	See Factory
12" x 42"	4.5" Threaded (BTRS)	42.8 / 1087	42.2 / 1072	19.1 / 72.0	2.55	AL, NA	See Factory
12" x 48"	2.5" Threaded	48.8 / 1240	48.8 / 1229	20.6 / 78.0	2.75	All	None
12" x 52"	2.5" Threaded	52.9 / 1344	52.4 / 1331	22.2 / 84.0	2.97	All	None
12" x 52"	4.0" Threaded	52.9 / 1344	52.4 / 1331	22.2 / 84.0	2.97	AL, BL, NA	See Factory
12" x 52"	4.5" Threaded (BTRS)	52.9 / 1344	52.4 / 1331	22.2 / 84.0	2.97	AL, NA	See Factory
13" x 54"	2.5" Threaded	54.6 / 1387	53.9 / 1369	27.5 / 104.0	3.68	All	None
13" x 54"	4.0" Threaded	54.6 / 1387	53.9 / 1369	27.5 / 104.0	3.68	AL, BL, NA	See Factory
14" x 47"	2.5" Threaded	46.5 / 1181	46.0 / 1168	27.5 / 104.0	3.68	AL, NA	See Factory
14" x 47"	4.0" Threaded	46.5 / 1181	46.0 / 1168	27.5 / 104.0	3.68	AL, NA	See Factory
14" x 47"	4.5" Threaded (BTRS)	46.5 / 1181	46.0 / 1168	27.5 / 104.0	3.68	AL, NA	See Factory
14" x 65"	2.5" Threaded	64.6 / 1641	64.3 / 1633	40.6 / 154.0	5.43	AL, BL, NA	See Factory
14" x 65"	4.0" Threaded	64.6 / 1641	64.3 / 1633	40.6 / 154.0	5.43	All	None
16" x 65"	2.5" Threaded	64.6 / 1641	64.3 / 1633	49.0 / 185.0	6.55	AL, BL, NA	See Factory
16" x 65"	4.0" Threaded	64.6 / 1641	64.3 / 1633	49.0 / 185.0	6.55	All	None
