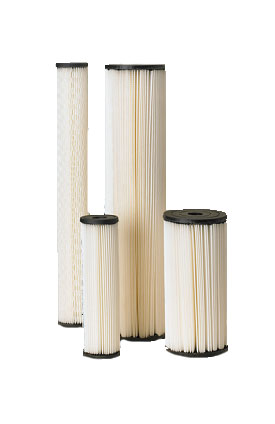

S1 Series Pleated Cellulose Cartridge
S1 Series cartridges are manufactured from a pleated cellulose media and are designed for general water filtration purposes.The media is pleated around a polypropylene core for added strength and the ends are immersed in a thermo-setting vinyl plastisol. Embedding and sealing each end of the pleat in this fashion fuses the three components together forming a unitized end cap and gasket. An external netted sheath helps retain uniform pleat spacing in high flow and pulsating flow streams. The overlap seam is sonically welded to reduce bypass improving filtration efficiency. S1 Series cartridges are economically priced and highly effective at reducing sediment particles down to 20-microns in size.
➣ Pleated design maximizes dirt-holding capacity
➣ Designed for general water filtration purposes
➣ Recommended for chlorinated water supplies
➣ Economically priced
➣ Nominal 20-micron rating
Cartridge Specifications and Performance Data
| Model | Maximum Dimensions | Micron Rating (Nominal) |
Initial Δ P (psi)@ Flow Rate (gpm) | Surface Area | Recommended Flow Rate |
|---|---|---|---|---|---|
| S1 |
2-5/8" × 9-3/4" (67 × 248 mm) |
20 |
2.4 psi @ 10 gpm (0.17 bar @ 38 L/min) |
580 sq. in. (0.38 m2) |
12 gpm (45 L/min) |
| S1-20 |
2-5/8" × 20" (67 × 508 mm) |
20 |
0.8 psi @ 10 gpm (0.06 bar @ 38 L/min) |
1110 sq. in. (0.72 m2) |
15 gpm (57 L/min) |
| S1-BB |
4-1/2" × 9-3/4" (114 × 248 mm) |
20 |
1.2 psi @ 10 gpm (0.08 bar @ 38 L/min) |
2070 sq. in. (1.34 m2) |
20 gpm (76 L/min) |
| S1-20BB |
4-1/2" × 20" (114 × 508 mm) |
20 |
1.2 psi @ 10 gpm (0.08 bar @ 38 L/min) |
4280 sq. in. (2.77 m2) |
35 gpm (132 L/min) |
