SAND FILTERS

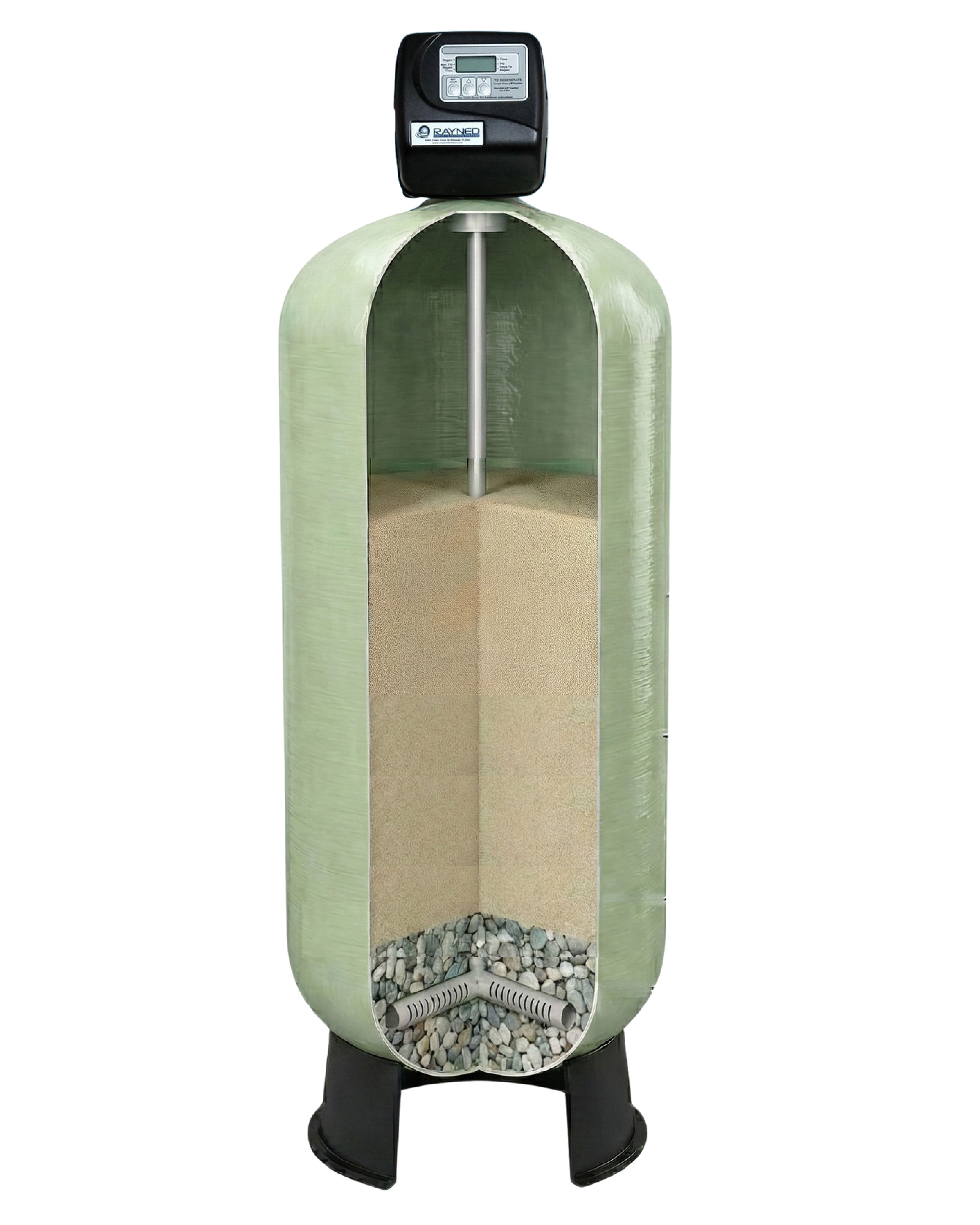

Rayned’ Commercial Sediment Filters are built utilizing Filter Sand filter media. These filters are designed to remove turbidity. Sediment filtration down to the 10 – 20 micron level is common. Rayned takes care of the little extras such as: machined PVC distribution systems, bolted on bases for ease of carrying, sand under-bedding for less channeling.
Technical Data
| Part Number | Tank Size Dia x Height (inches) | Service Min Flow Rate GPM (LPM) | Service Peak Flow Rate GPM (LPM) | Backwash Drop GPM (LPM) | Standard Connection Size |
|---|---|---|---|---|---|
| RAYSN 10 | 10' x 54' | 6 (22.8) | 9 (34.2) | 4.0 (18.9) | ¾” Copper Tube |
| RAYSN 12 | 12' x 52' | 8(30.4) | 12 (5.6) | 7.0 (26.6) | ¾” Copper Tube |
| RAYSN 14 | 14' x 65' | 10 (38) | 15 (57) | 10 (38) | 1″ Copper Tube |
| RAYSN 16 | 16' x 65' | 14 (53)) | 20 (76) | 13 (49) | 1″ Copper Tube |
| RAYSN 18 | 18' x 65' | 17 (65) | 24 (91) | 18 (68.4) | 1″ Copper Tube |
| RAYSN 21 | 21' x 62' | 22 (83) | 30 (114) | 25 (95) | 1″ Copper Tube |
| RAYSN 21X | 21' x 62' | 30 (114) | 48 (182) | 25 (95) | 1.25″ NPT (Male) |
| RAYSN 24 | 24' x 72' | 38 (144) | 63 (239) | 37 (140) | 1.5″ NPT (Male) |
| RAYSN 30 | 30' x 72' | 59 (223) | 96 (363) | 59 (223) | 1.5″ NPT (Male) |
| RAYSN 36 | 36' x 72' | 85 (322) | 145 (549) | 85 (322) | 2″ NPT (Male) |
| RAYSN 42 | 42' x 72' | 115 (435) | 193 (731) | 115 (435) | 2″ NPT (Male) |
| RAYSN 48 | 48' x 72' | 151 (572) | 253 (958) | 151 (572) | 2 – 3″ NPT (Male) |
| RAYSN 63 | 63' x 67' | 285 (1079) | 475 (1798) | 285 (1079) | Stager Controller |
