Stainless Steel Housings
PRODUCTS > Stainless Steel Housings
Stainless Steel Housings

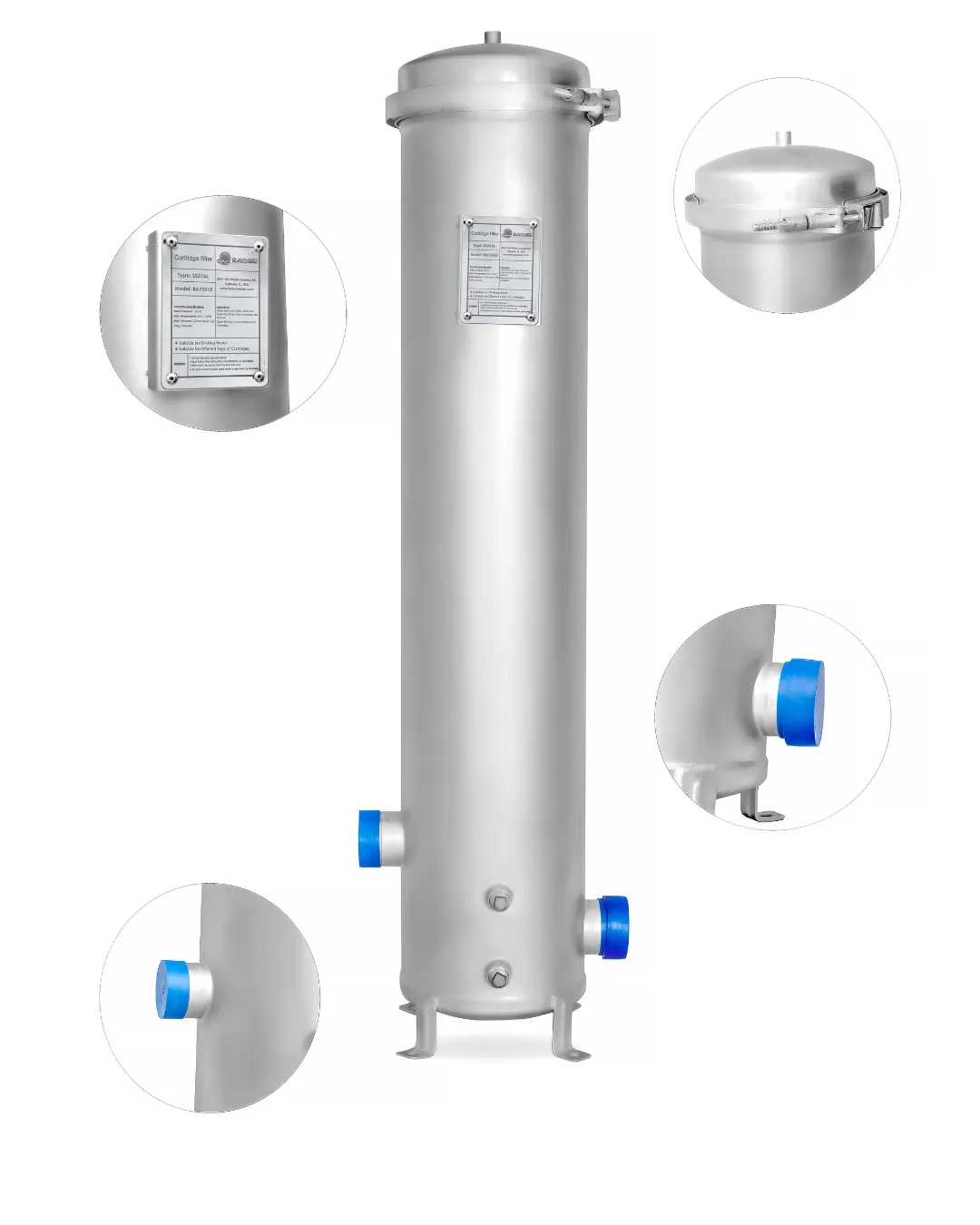

Rayned’ heavy duty stainless steel filter housings are designed for food industry and high temperature applications, and accept all standard size replacement cartridges.
➣ Heavy Duty design for residential, commercial, and industrial applications
➣ Multiple cartridge units all with brushed stainless steel or electro polished finishing for high flow rates, high temperature and long life.
➣ Accepts full range of sediment & taste/odor reduction cartridges.
➣ Available in 304 or 316 ss.
➣ All models available with vents and drains for easy cartridge change.
➣ Stainless Steel Filter Housing 10″ & 20″ are coming with Brass Head also.
Housing Specification and Performance Data
| Part Number | Number of Cartridges 10" |
Connection Size |
Max Pressure PSI / (Bar) |
Max. Flow Rate* GPM / (L/M) |
|---|---|---|---|---|
| RAYSS1 | 1 | 3/4" / 1" | 250 / (17.2) | 8 / (30) |
| RAYSS2 | 2 | 3/4" / 1" | 250 / (17.2) | 16 / (60) |
| RAYSS5 | 5 | 1.5" | 150 / (10.3) | 40 / (150) |
| RAYSS7 | 7 | 1.5" | 150 / (10.3) | 56 / (210) |
| RAYSS10 | 10 | 2" | 150 / (10.3) | 80 / (300) |
| RAYSS12 | 12 | 2" | 150 / (10.3) | 96 / (363) |
| RAYSS14 | 14 | 2" | 150 / (10.3) | 112 / (420) |
| RAYSS15 | 15 | 2" | 150 / (10.3) | 120 / (450) |
| RAYSS20 | 20 | 2" | 150 / (10.3) | 160 / (600) |
| RAYSS21 | 21 | 2" | 150 / (10.3) | 168 / (630) |
| RAYSS28 | 28 | 2" | 150 / (10.3) | 224 / (840) |
| RAYSS36 | 36 | 3" | 150 / (10.3) | 288 / (1080) |
| RAYSS48 | 48 | 3" | 150 / (10.3) | 384 / (1451) |
| RAYSS75 | 75 | 3" | 150 / (10.3) | 600 / (2250) |
| RAYSS100 | 100 | 3" | 150 / (10.3) | 800 / (3000) |
