Steel Filter Vessel
PRODUCTS > Steel Filter Vessel

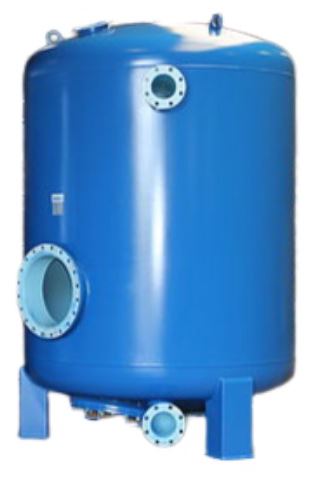

Steel Filter Vessel
All tanks have two large top and bottom access opening to simplify distributor system assembly. Rayned, Steel or Stainless steel tanks are UL classified for drinking water system components in accordance with standard ANSI/NSF 61-(1992) 7N44.
In addition, all standard tanks feature two fpt x fpt full couplings located at the topside wall and center bottom of the tanks. All tanks larger than 36″ in diameter have a manway w/cover, and a top center spud to bleed air. These tanks are durable, rust proofed, and buil to last.
Technical Specification
➢ 100 PSI Max. operating pressure.
➢ 150 PSI Tested pressure.
➢ Standardized equipment
➢ Means faster shipping.
➢ Lifting lugs are standard on all tanks.
➢ Custom designs available.
➢ Stainless Steel Tank available in 304 and 316.
➢ Standard Vanish finishing.
➢ Custom made Electro Polished finishing.
Technical Specification
| Description | Tank Size Height (Inches) |
Volume Cubic Feet |
Top Open (Inches) |
Bottom Open (Inches) |
Ship Weight (Lb.) |
|---|---|---|---|---|---|
| RAYS10-54 | 56 | 1.8 | 2.5 | NONE | 29 |
| RAYS12-54 | 56 | 3.4 | 2.5 | NONE | 33 |
| RAYS14-65 | 67 | 5.1 | 2.5 | NONE | 41 |
| RAYS16-65 | 67 | 6.6 | 2.5 | NONE | 43 |
| RAYS20-62 | 76 | 11 | 4 X 6 | 4 X 6 | 180 |
| RAYS20-72 | 86 | 14 | 4 X 6 | 4 X 6 | 204 |
| RAYS22-60 | 75 | 15 | 4 X 6 | 4 X 6 | 188 |
| RAYS24-60 | 75 | 17 | 4 X 6 | 4 X 6 | 197 |
| RAYS24-72 | 87 | 20 | 4 X 6 | 4 X 6 | 340 |
| RAYS30-72 | 91 | 32 | 4 X 6 | 4 X 6 | 467 |
| RAYS36-72 | 96 | 47 | 11 X 15 | 4 X 6 | 672 |
| RAYS42-72 | 100 | 65 | 11 X 15 | 4 X 6 | 852 |
| RAYS48-72 | 107 | 86 | 12 X 16 | 4 X 6 | 1159 |
