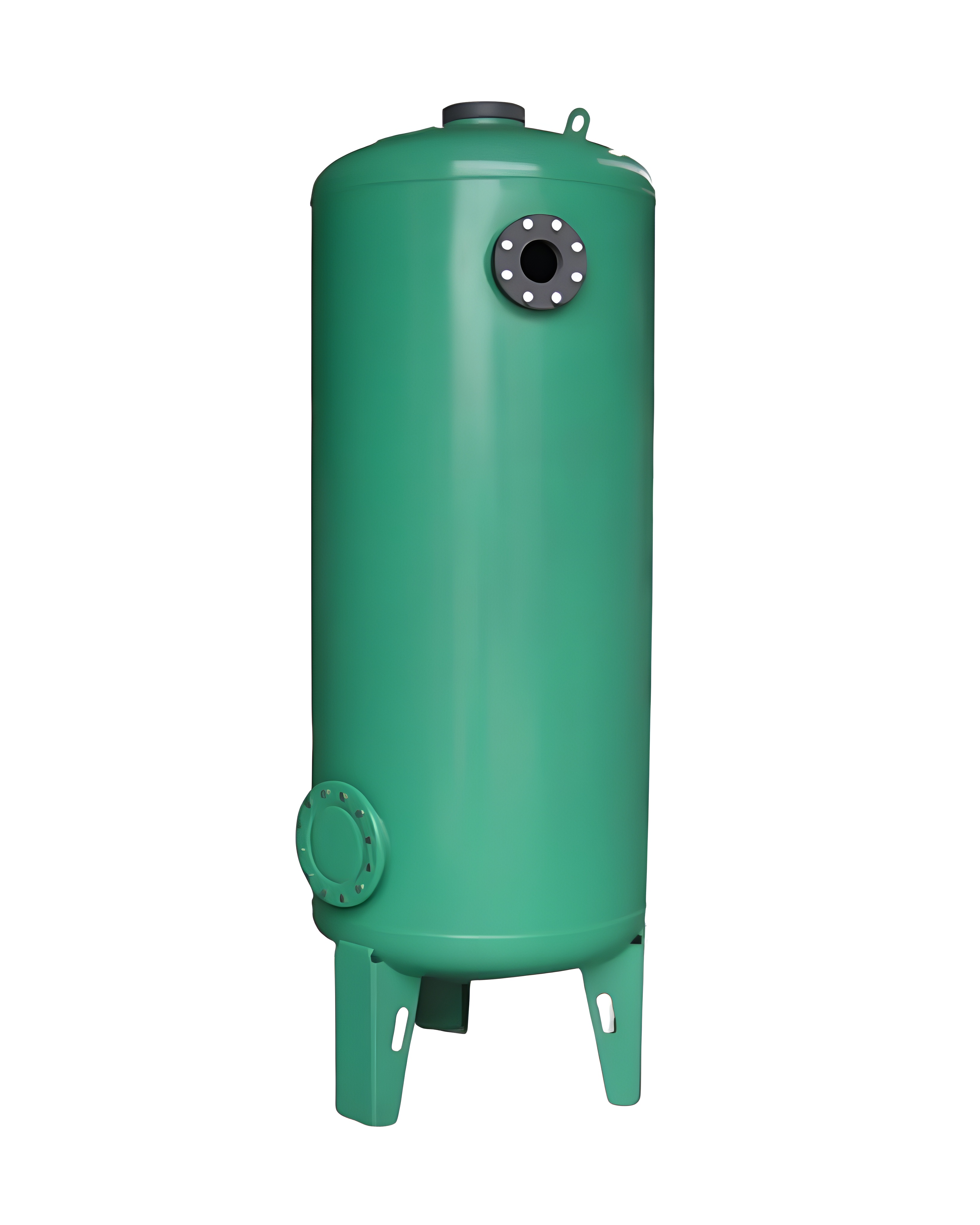

Steelpex Vessels
Pressure vessels made of carbon steel with in- and outside a non- poreus poly-ethylene lining.
➣ Design pressure: 7 bar
➣ Design temperature: 60°C → On demand 100°C
➣ Flange connections: DIN28117
➣ Standard colors: Green RAL6024, Bleu RAL5015, Grey RAL 7001
➣ Conform PED 2014-68-EU-art.4§3
➣ Foodstuff and drinking water approved
➣ Easy and fast mounting of internals
SteelPex-tanks
➣ Robust and solid steel tank
➣ Flexible design to meet your demand
➣ Excellent UV, corrosion and chemical resistance
➣ Suitable for foodstuffs and drinking water
➣ Recyclable materials, eco-friendly
Standard Dimensions
| Type | Ø Dia (mm) |
Cylindrical Height (mm) |
Volume (Liter) |
Total Height (mm) |
Weight (Kg) |
Top Flange |
Bottom Flange |
Side Flange |
Filling Port (n°) |
Lateral Service Port |
Central Top Manhole |
|---|---|---|---|---|---|---|---|---|---|---|---|
| F-50-TBS | 500 | 1500 | 320 L | 1990 | 80 kg | DN100 | DN100 | DN65 | — | handhole 2 | — |
| F-65-TBS | 650 | 1400 | 520 L | 1960 | 110 kg | DN100 | DN100 | DN65 | handhole 1 | DN 200 | — |
| F-75-TBS | 750 | 1500 | 760 L | 2090 | 155 kg | DN100 | DN100 | DN65 | handhole 1 | DN 200 | — |
| F-80-TBS | 800 | 1700 | 975 L | 2420 | 175 kg | DN100 | DN100 | DN65 | handhole 1 | DN 200 | — |
| F-90-TBS | 900 | 1800 | 1300 L | 2580 | 290 kg | DN100 | DN100 | DN100 | handhole 1 | DN 200 | — |
| F-100-TBS | 1000 | 1800 | 1650 L | 2600 | 330 kg | DN100 | DN100 | DN100 | handhole 1 | DN 200 | — |
| F-110-TBS | 1100 | 1800 | 2000 L | 2630 | 370 kg | DN100 | DN100 | DN100 | handhole 1 | DN 200 | — |
| F-125-TBS | 1250 | 1800 | 2775 L | 3000 | 560 kg | DN100 | DN100 | DN100 | handhole 1 | DN 200 | DN 400 |
