Twin Tank Water Softeners
Rayned’ Twin Tank System provides continuous soft water all day. Everyday! One tank is always in service, while the other tank is in regeneration. Rayned system can be configured for either twin alternating or twin parallel operation.
Soft Water Backwash
Rayned system backwashes with softened water to eliminate hardness carryover. Rayned system is also extremely efficient, using as little as 30 gallons of soft water to regenerate.
Memory and History Capabilities
Rayned system meters and stores water usage data. This data can be displayed, allowing the user to monitor usage and fine-tune the cycle settings accordingly.
Easy-to-Read Display

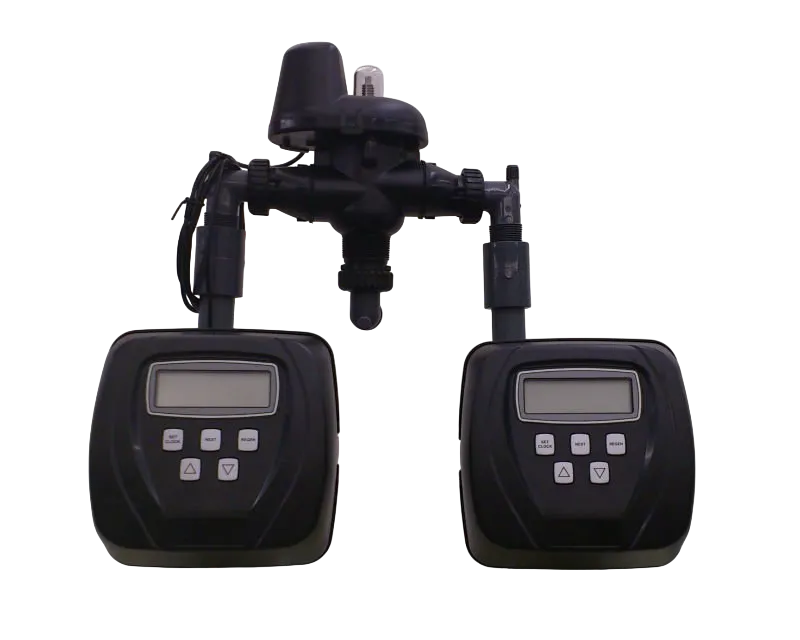

Rayned controllers have a large four-digit display, allowing the user to easily see the remaining capacity and the flow rate. The controller also clearly displays which tank is in service, and which is in regeneration or standby.
Isolation is configuration-dependent.
➢ Distributor System
➢ Fully ported 1 inch valves for high flow rates and low pressure drops
➢ Twin parallel operation option
➢ Isolation of unit for servicing *
➢ Common parts with other family valves
➢ Low cost, highly advanced electronics
➢ Flow and usage history at the touch of a button
Rayned Twin Alternating Water Treatment Systems
Rayned Twin Tank Residential Water Treatment Systems utilize resins as the primary functioning layers. These cation and anion exchange units are designed to remove calcium and magnesium (hardness), and are also available with nitrate, chlorine, and tannin removal capabilities. Rayned systems feature the newest in computer monitoring technology for maximized efficiency.
➢ Fully ported 1 inch valves
➢ 100% corrosion-free system
➢ Energy efficient controller uses less than $5.00 of electricity per year
➢ Rayned’s Cyclonic Distributor System increases flow efficiency
➢ Power Loss Memory Retention stores programmed parameters in static memory (Battery back-ups not needed)
➢ All units include bypass valves, brine tank, and (2) brine pickups with air check assembly
➢ Safety floats and chrome finish tank jackets available
➢ Twin parallel configuration optional
Technical Data
| Model |
Tank Size In Inches Dia × Height |
CaCO3 (Hardness) Capacity Per Tank |
Service Standard Flow Rate GPM |
Service Peak Flow Rate GPM |
Brine Tank Liters |
Standard Connection Size Inches |
||
|---|---|---|---|---|---|---|---|---|
|
@ 6 lbs./cu.ft. Grains/Gal |
@ 10 lbs./cu.ft. Grains/Gal |
@ 15 lbs./cu.ft. Grains/Gal |
||||||
| RAYSF-T7 | 7 × 44 | 11,000 | 13,775 | 16,750 | 3 GPM | 6 GPM | 100 Ltrs. | 1" MNPT |
| RAYSF-T8 | 8 × 44 | 16,500 | 20,650 | 25,125 | 4 GPM | 8 GPM | 100 Ltrs. | 1" MNPT |
| RAYSF-T9 | 9 × 48 | 22,000 | 27,550 | 33,500 | 5 GPM | 10 GPM | 100 Ltrs. | 1" MNPT |
| RAYSF-T10 | 10 × 54 | 33,000 | 41,325 | 50,250 | 7.5 GPM | 15 GPM | 100 Ltrs. | 1" MNPT |
| RAYSF-T12 | 12 × 52 | 44,000 | 55,100 | 67,000 | 10 GPM | 20 GPM | 100 Ltrs. | 1" MNPT |
| RAYSF-T13 | 13 × 54 | 55,000 | 68,875 | 83,750 | 12.5 GPM | 20 GPM | 100 Ltrs. | 1" MNPT |
| RAYSF-T14 | 14 × 65 | 77,000 | 96,425 | 117,250 | 17.5 GPM | 20 GPM | 100 Ltrs. | 1.25" MNPT |
Downloads
Click below to download the product catalogue:
Download CatalogueOperating capacity based on influent of 500 ppm as CaCO3 with ratio of 2 parts calcium to 1 part magnesium.
Capacities include a 5 to 10% safety factor.
Operating pressure: 20 to 150 psi (1.4 to 10.3 bar)
Operating temperature: 36 to 120ºF (2 to 48.9ºC)
All pressure vessels are wound fiberglass, reinforced polypropylene copolymer, and are NSF® listed.
International voltages available at additional cost. Other connections are vailabl
